Purple Dove V2 · the closer bass line
FOUR STRINGS.
A SHORTER ROAD BETWEEN THE NOTES.
The Purple Dove V2 brings its character close to the player: a 30-inch scale, a compact double-cutaway body and a deep purple finish, with mother-of-pearl doves travelling along the fretboard like small signs of movement.

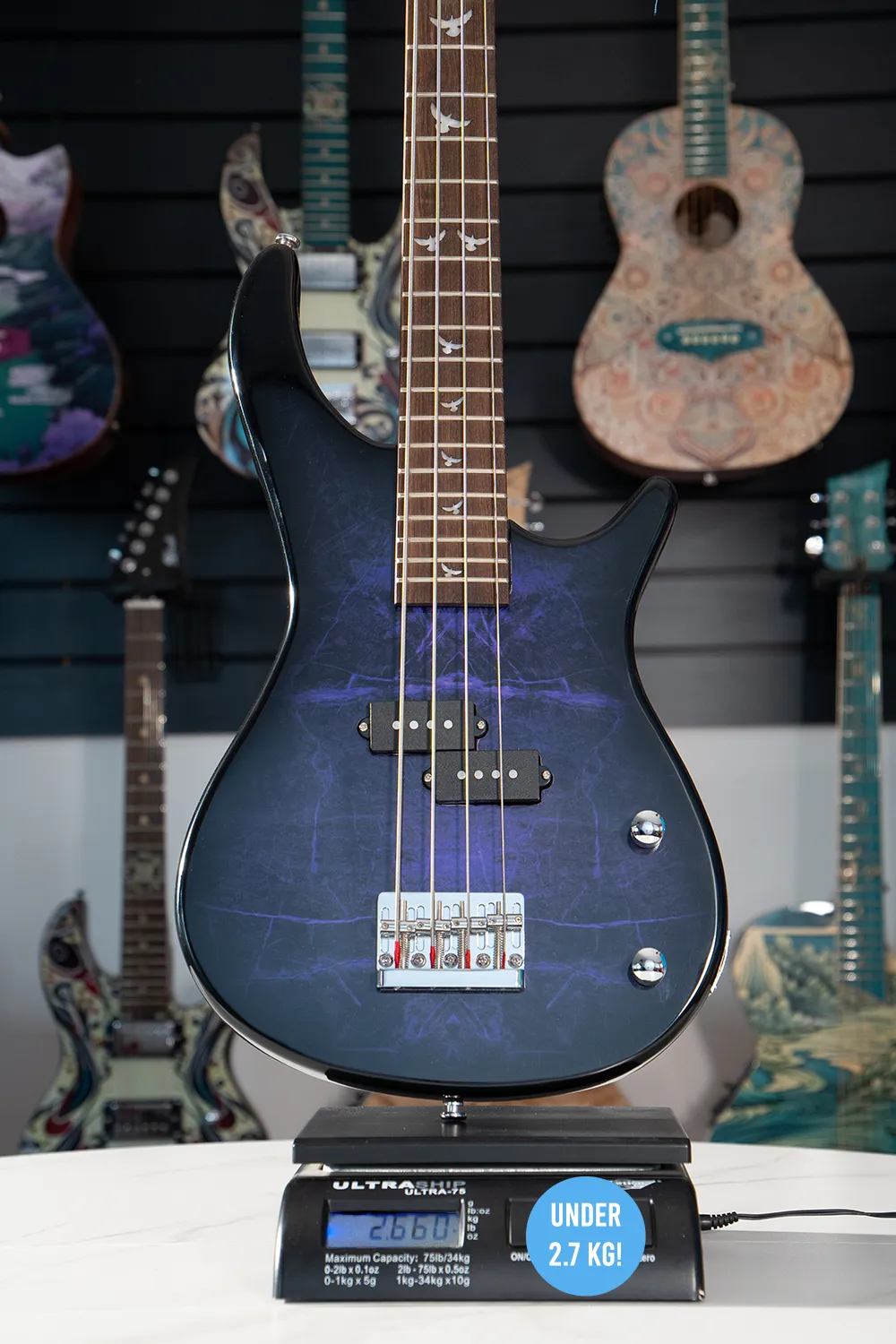

Its measured dimensions tell the practical part of the story—3/4 size, approximately 2.7 kg and 40 inches overall—while the split-coil P hum-cancelling pickup keeps the control layout to one volume and one tone.
The silhouette
Short scale, drawn as one continuous line.

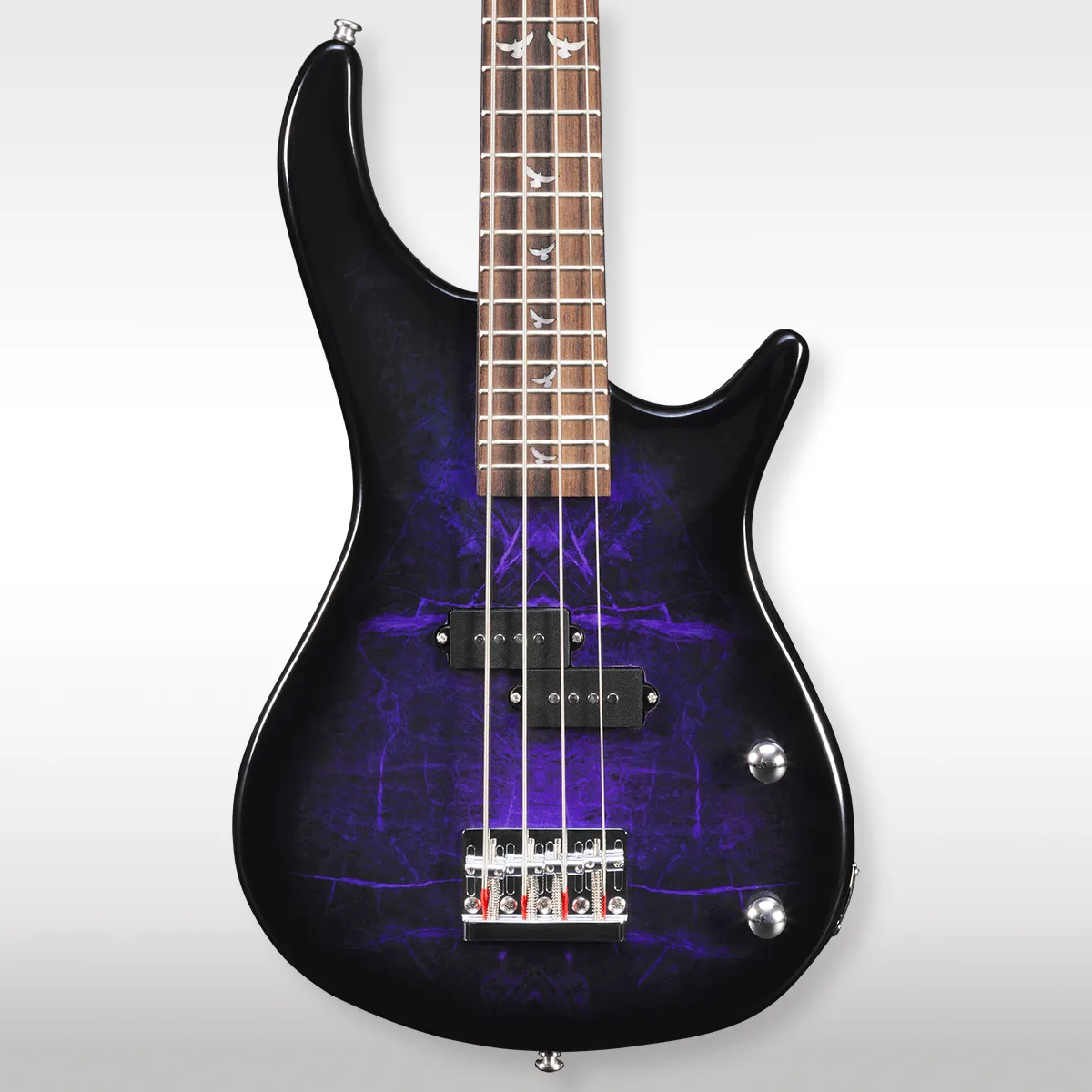

The sycamore body uses a double-cutaway shape, while the maple neck carries a solid laurel fretboard. The 30-inch scale shortens the distance between positions when compared with a standard 34-inch bass scale.

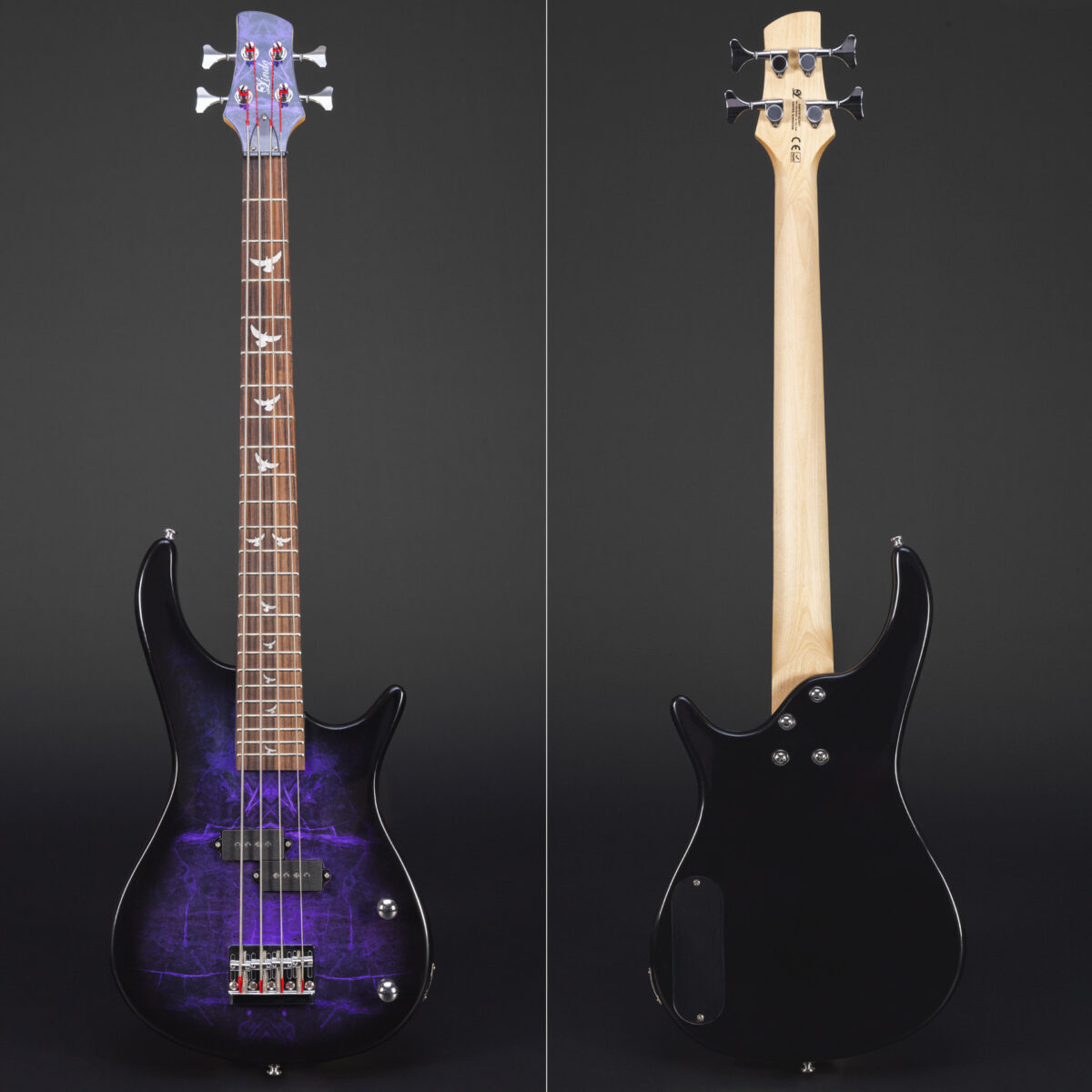

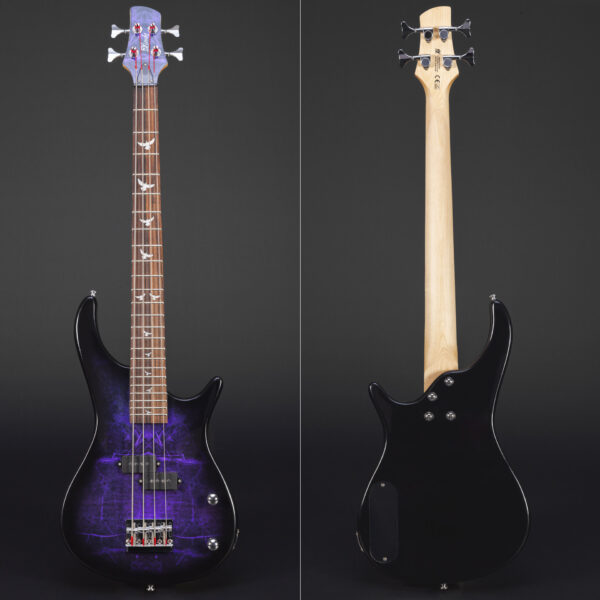

Turn it around and the design becomes quieter: the full front-and-back view reveals the body contour, neck line and body-matched colour working as one composition.

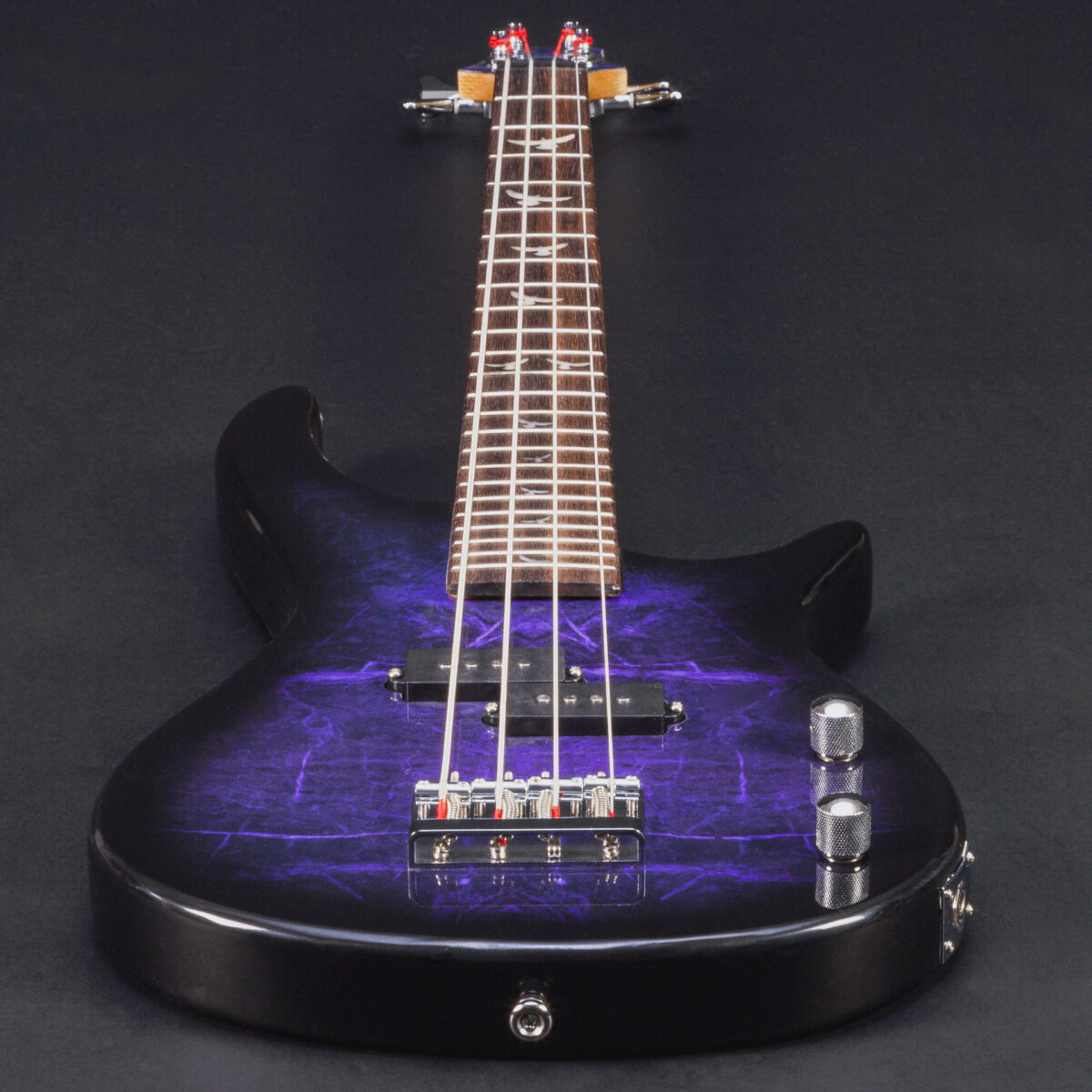

At the centre of the body
One split-coil pickup. Two essential controls.
The Lindo split-coil P hum-cancelling pickup sits at the centre of a deliberately direct layout. One chrome volume knob and one chrome tone knob keep the path uncomplicated.
At the bridge, individual adjustable saddles provide the hardware needed for intonation and string-height adjustment. The chrome finish connects the bridge, controls and machine heads visually.
Small landmarks on a purple route
The doves move; the side dots glow.
Mother-of-pearl dove inlays travel along the solid laurel fretboard. At its edge, Luminlay side dots can be charged with light before playing, providing fret-position references after the surrounding room becomes dim.
The reverse view
Maple beneath the colour.
The back of the headstock returns to the natural maple neck. Alloy machine heads with a chrome finish complete the four-string layout, while the two-way truss rod provides the verified adjustment system within the neck.
The contrast is intentional in appearance: purple on the face, maple at the back, chrome at the points where the instrument is tuned and adjusted.
Before it leaves Bristol
The final chapter is practical.
Each B-stock Purple Dove V2 receives a full UK setup before dispatch. The process checks cosmetic condition, pickup function, neck relief, nut height, action, frets, fretboard, intonation, tuning and final playability.
The exact appearance marks may vary. The preparation remains the point where that cosmetic history is separated from the instrument’s function.
The construction in one frame
Let the original guide stay large enough to read.
The feature artwork contains its own labels, so it is preserved at the full story width. The cards underneath repeat only the four details most useful at a glance.
The measured view
Dimensions, weight and specifications.
The original dimension drawing is presented at the full story width so its annotations remain useful. Beneath it, the portrait weight image and five key measurements now share one balanced technical panel; the complete specification list follows for desktop and mobile.
Specifications
| Condition | B-stock · brand new and fully functional with varying minor cosmetic finish imperfections |
|---|---|
| Colour | Purple |
| Size / overall length | 3/4 size · approximately 40″ / 101 cm overall |
| Scale / body depth | 30″ short scale · 40 mm body depth |
| Weight | Approximately 2.7 kg |
| Body / neck | Sycamore body · maple neck · two-way truss rod |
| Fretboard | Solid laurel |
| Frets / nut | 24 frets · 42 mm ABS nut |
| Inlays / side dots | Mother-of-pearl dove inlays · Luminlay side dots |
| Pickup | Lindo split-coil P hum-cancelling pickup |
| Controls | One volume · one tone |
| Bridge | Fixed bridge with individually adjustable saddles |
| Machine heads | Chrome-finished alloy |
| Strings | Steel .040, .060, .075, .095 |
| Included | Truss-rod Allen key |
The Purple Dove in motion
First see the instrument turn; then hear it play.
Both original moving-image assets remain in the page. The short loop shows the instrument from changing angles, while the official Demo and playthrough gives the Purple Dove V2 its own uninterrupted space.
Original Purple Dove V2 rotating view.
Official Purple Dove V2 Demo and playthrough.
The last word
THE SCALE IS SHORTER.
THE STORY STILL TRAVELS.
B-stock makes the cosmetic history clear before the first note. Beyond it remains the Purple Dove V2: compact proportions, four strings, a simple signal path and small mother-of-pearl birds already moving towards the next line.
