Lindo Earth · Production model
EARTH 12
Twelve strings.
More to explore.

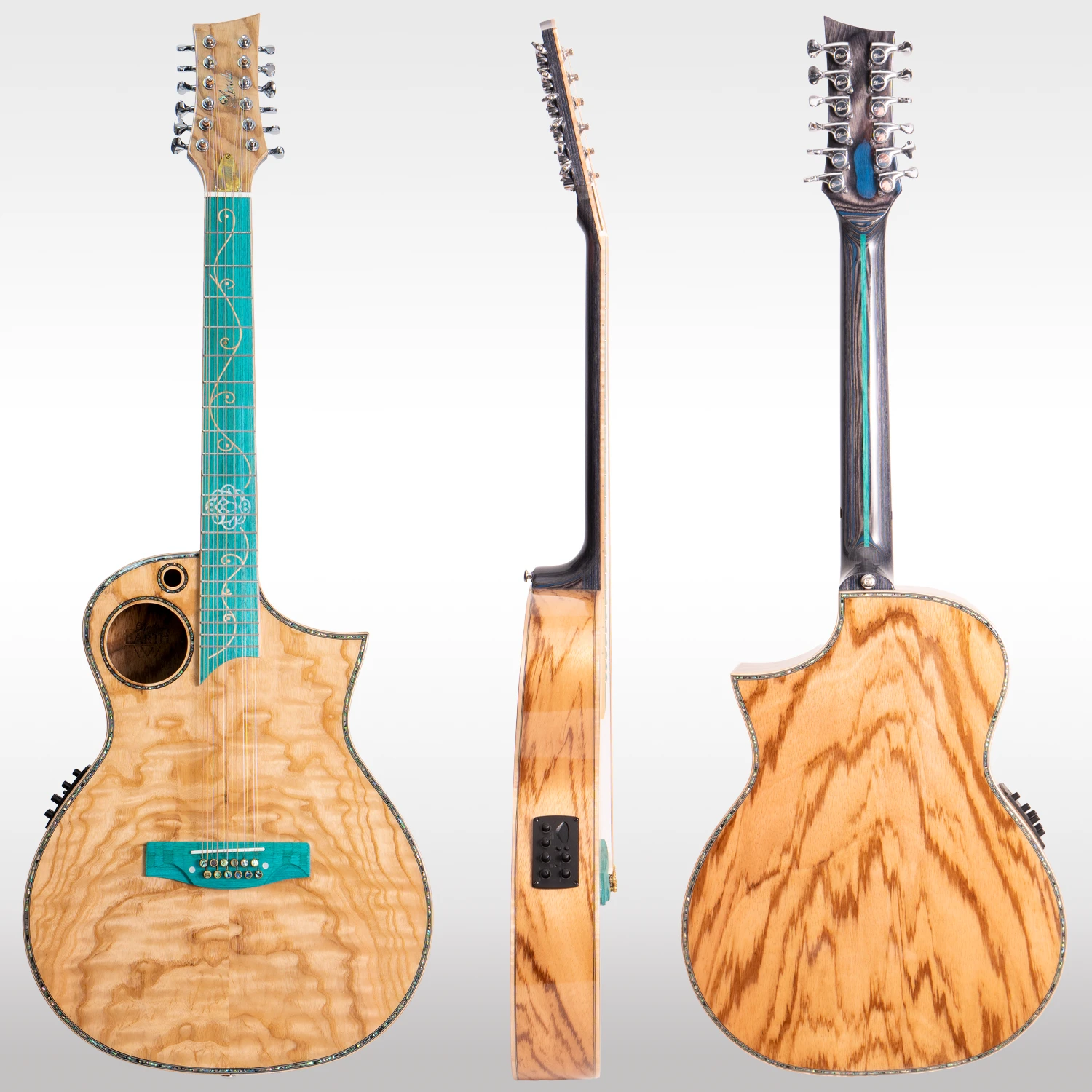

Six pairs of strings add a fuller, layered texture to familiar chords and picked passages. The Earth 12 brings that twelve-string format to a slim acoustic body, with a reinforced neck, thoughtful playing details and controls for amplified use.
Figured Tamo ash, striped zebrano and teal composite details give the Earth its distinctive character. A premium hard case is included.
Pre-order · Available 15 January 2027

01 · The full-size twelve-string
Room to play.
A slimmer body to hold.

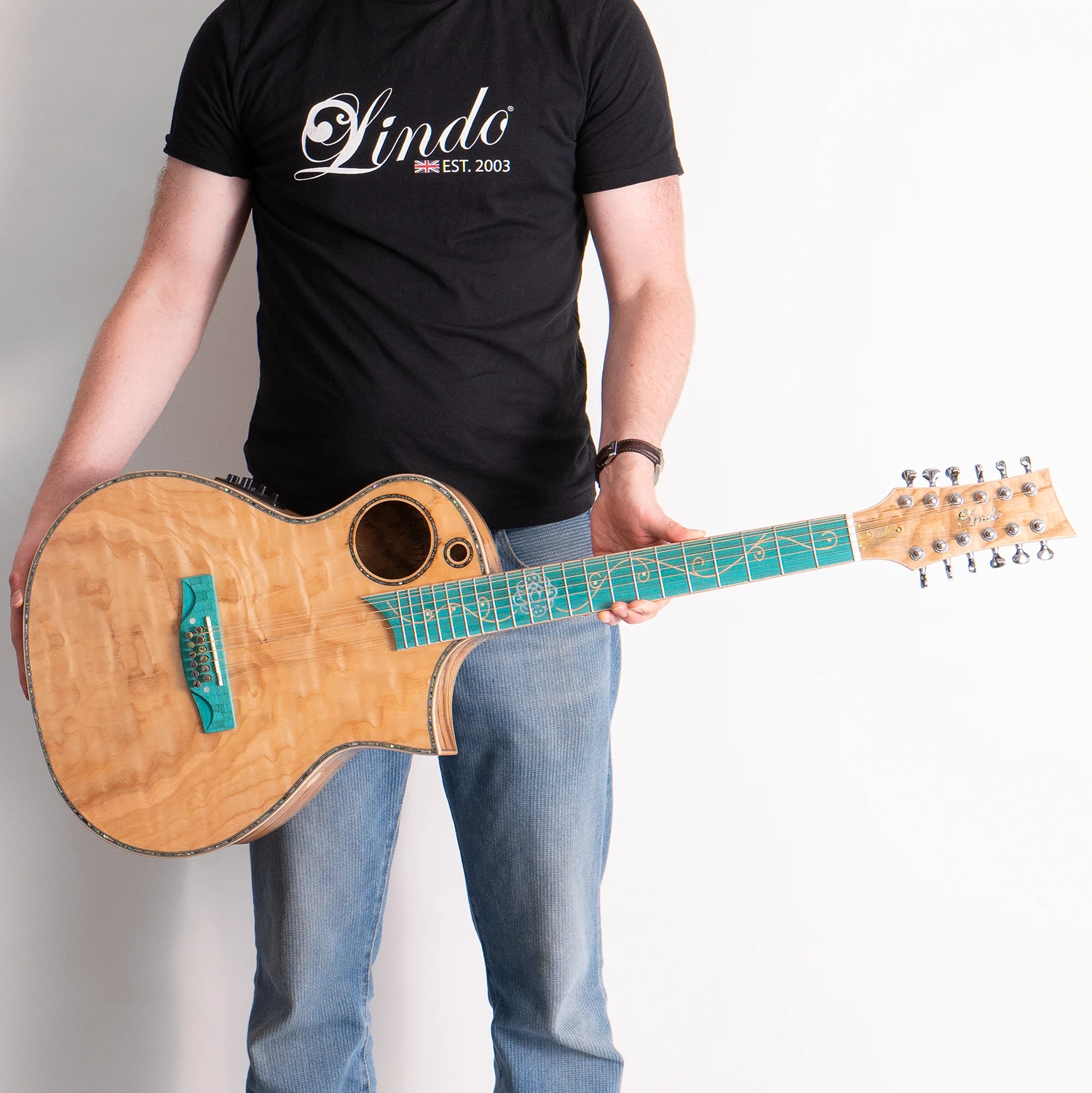

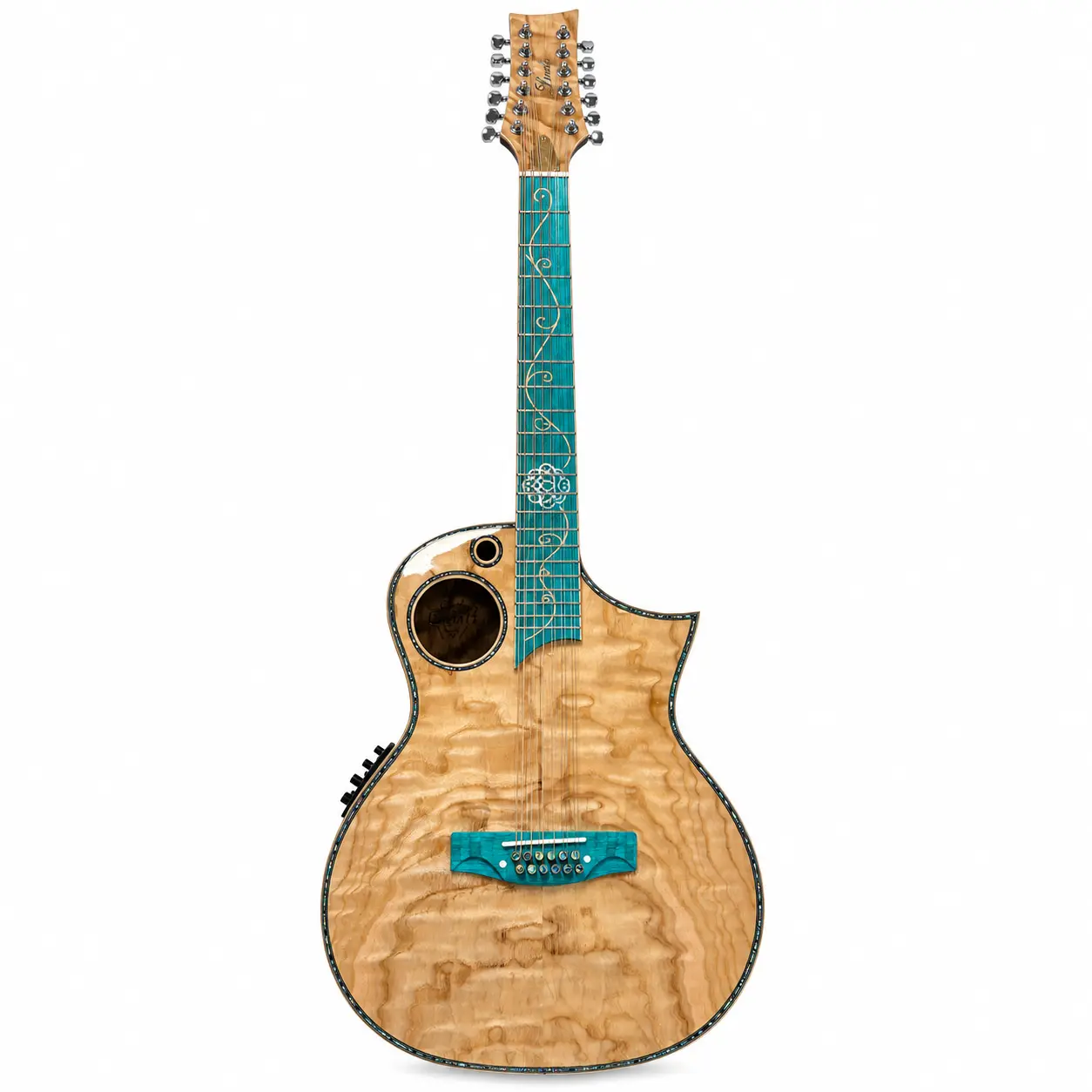

The full-size cutaway body pairs a 25.5-inch scale with an 80 mm depth. That shallow profile brings the instrument closer to you, while the cutaway leaves more room for your fretting hand when reaching towards the upper frets.
The natural gloss finish keeps the timber’s figure visible from front to back. Grain and shell vary, giving each production instrument its own pattern.


02 · Natural materials
A distinctive instrument, from every angle.

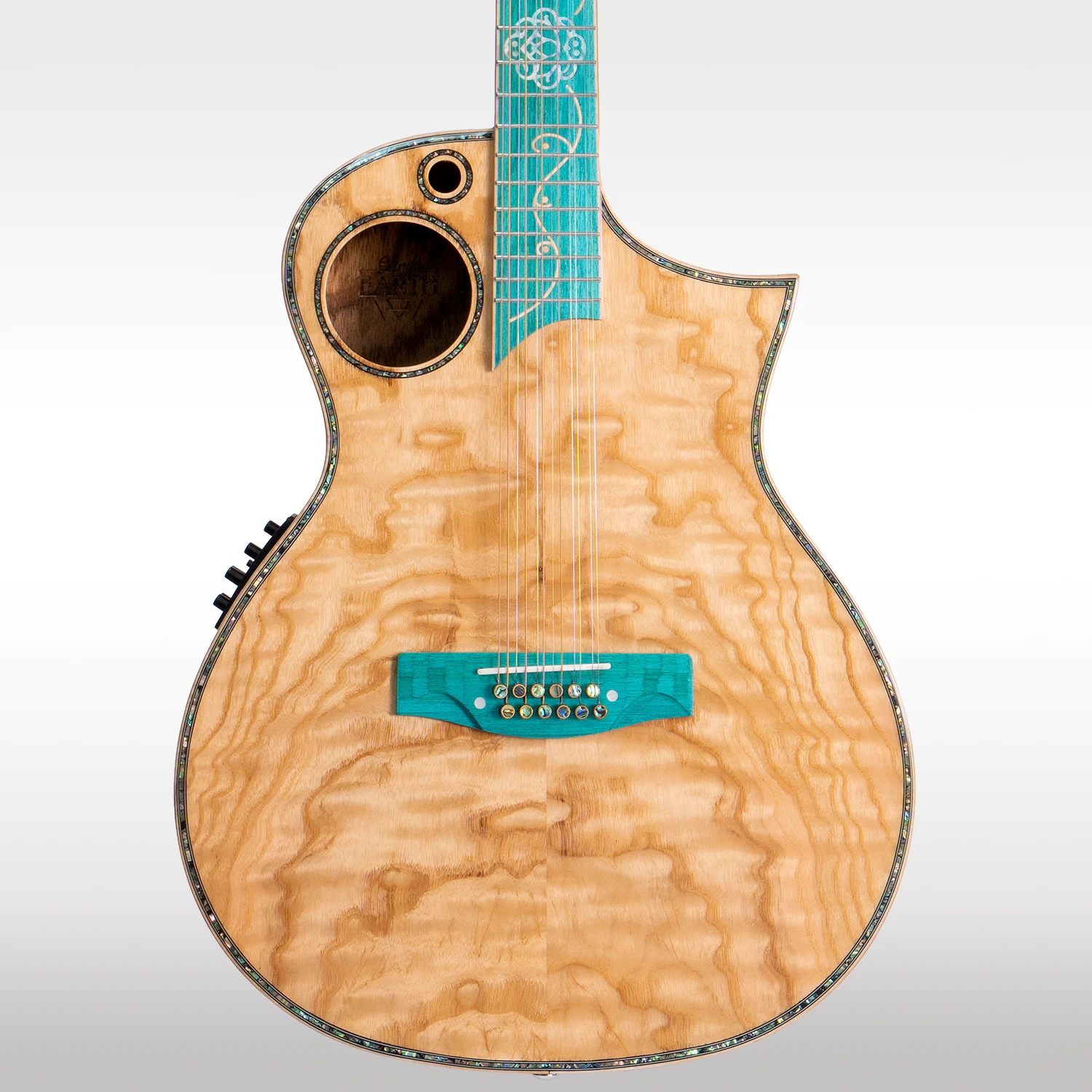

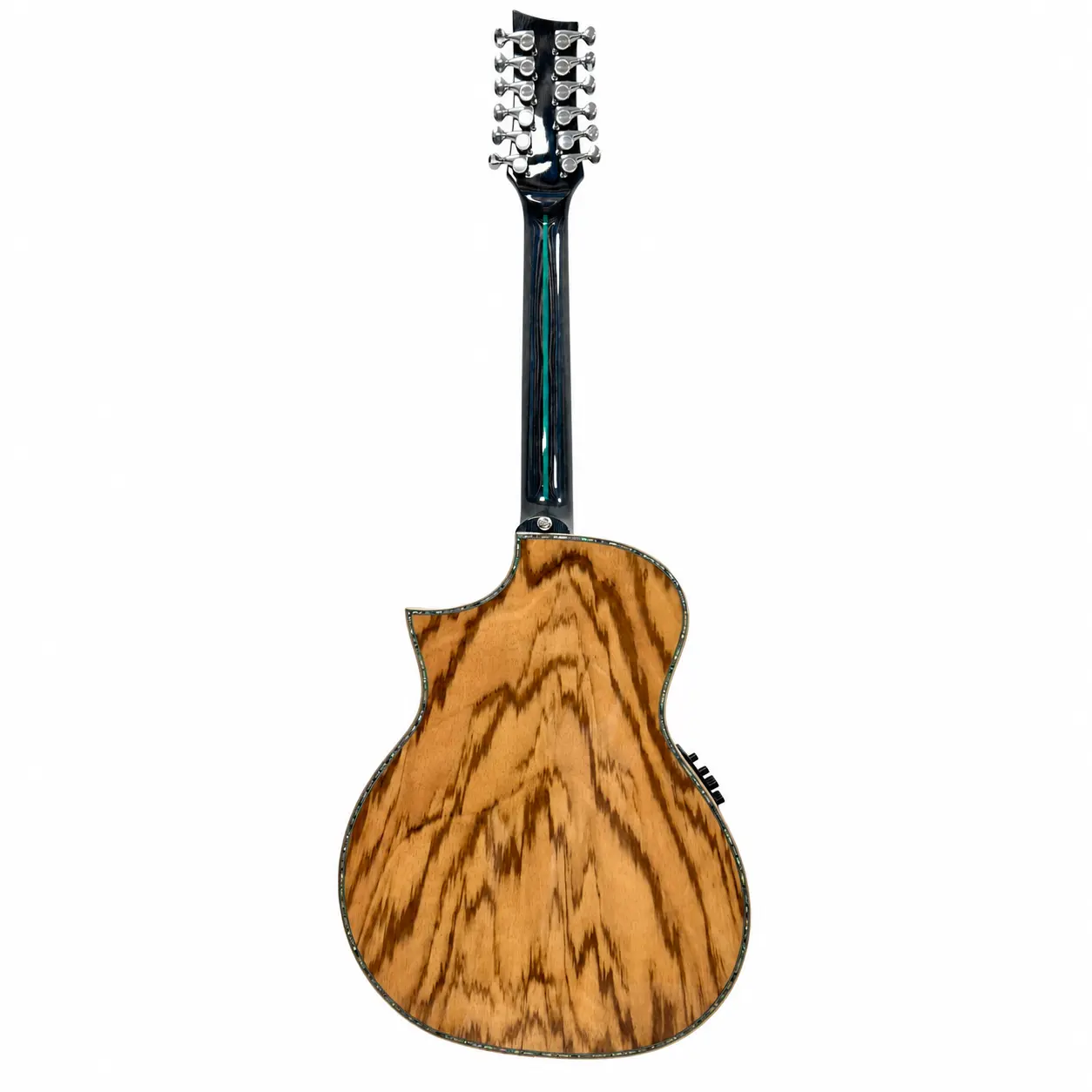

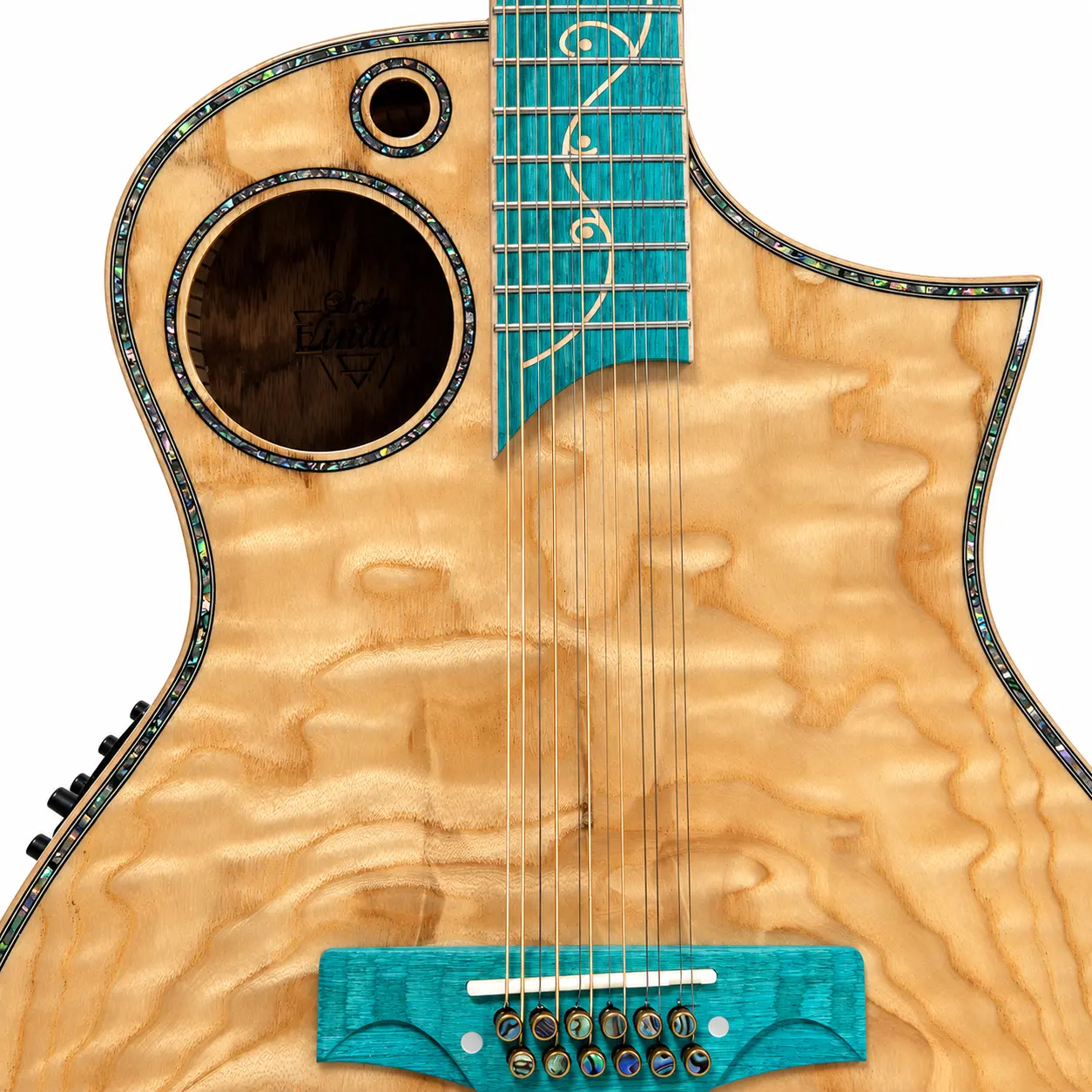

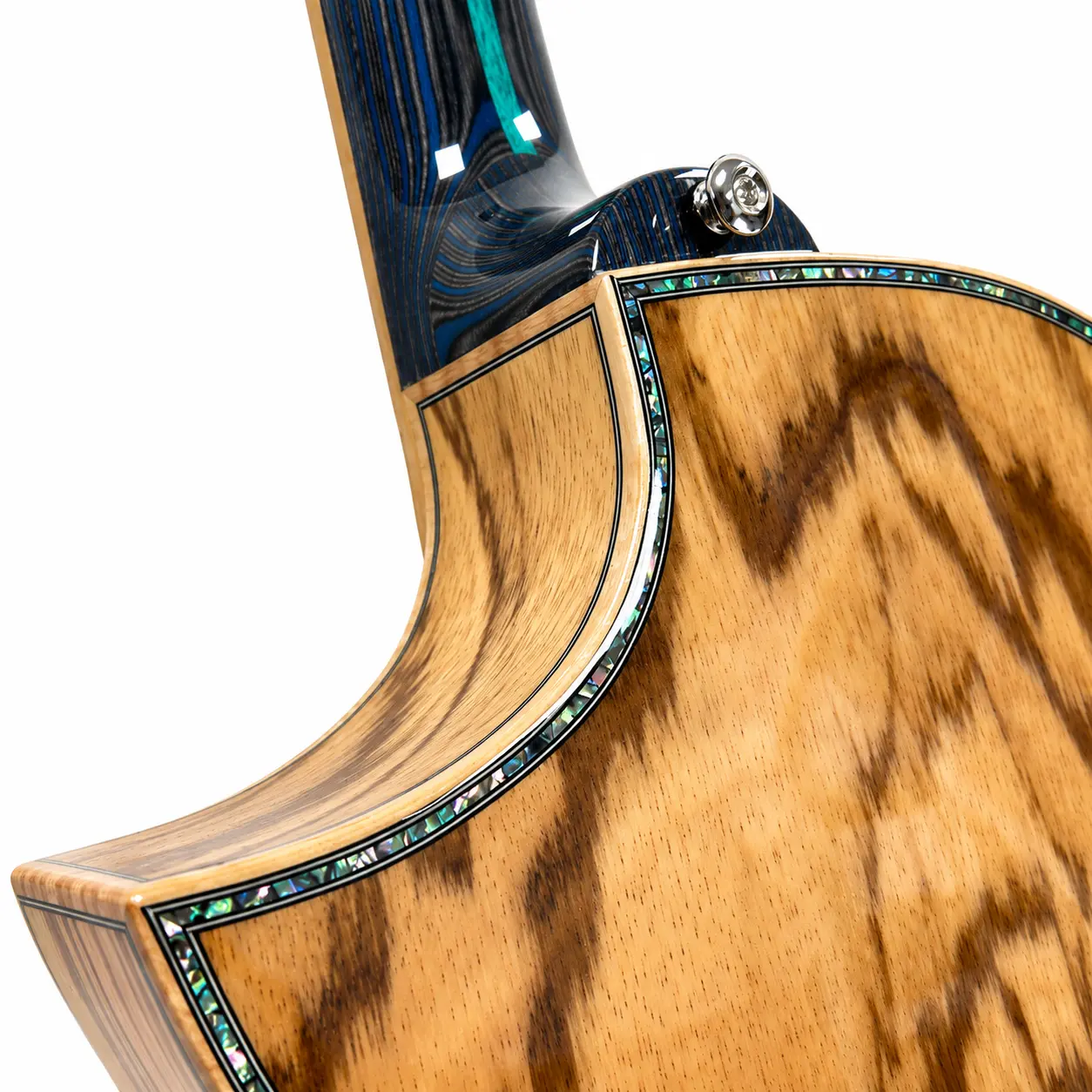

The highly figured Tamo ash top meets flatsawn zebrano at the back and sides. A natural gloss finish leaves their contrasting grain on view, while maple binding and abalone purfling give the edges a crisp, carefully finished outline.
The teal composite fretboard carries Lindo’s custom Flora inlay in mother-of-pearl and maple. Its colour returns at the bridge and along the River stripe behind the neck, connecting the playing details without covering the natural timber. Wood grain and shell vary, so each production instrument has its own pattern.
03 · Earth and Moon
The Earth’s recognisable face.

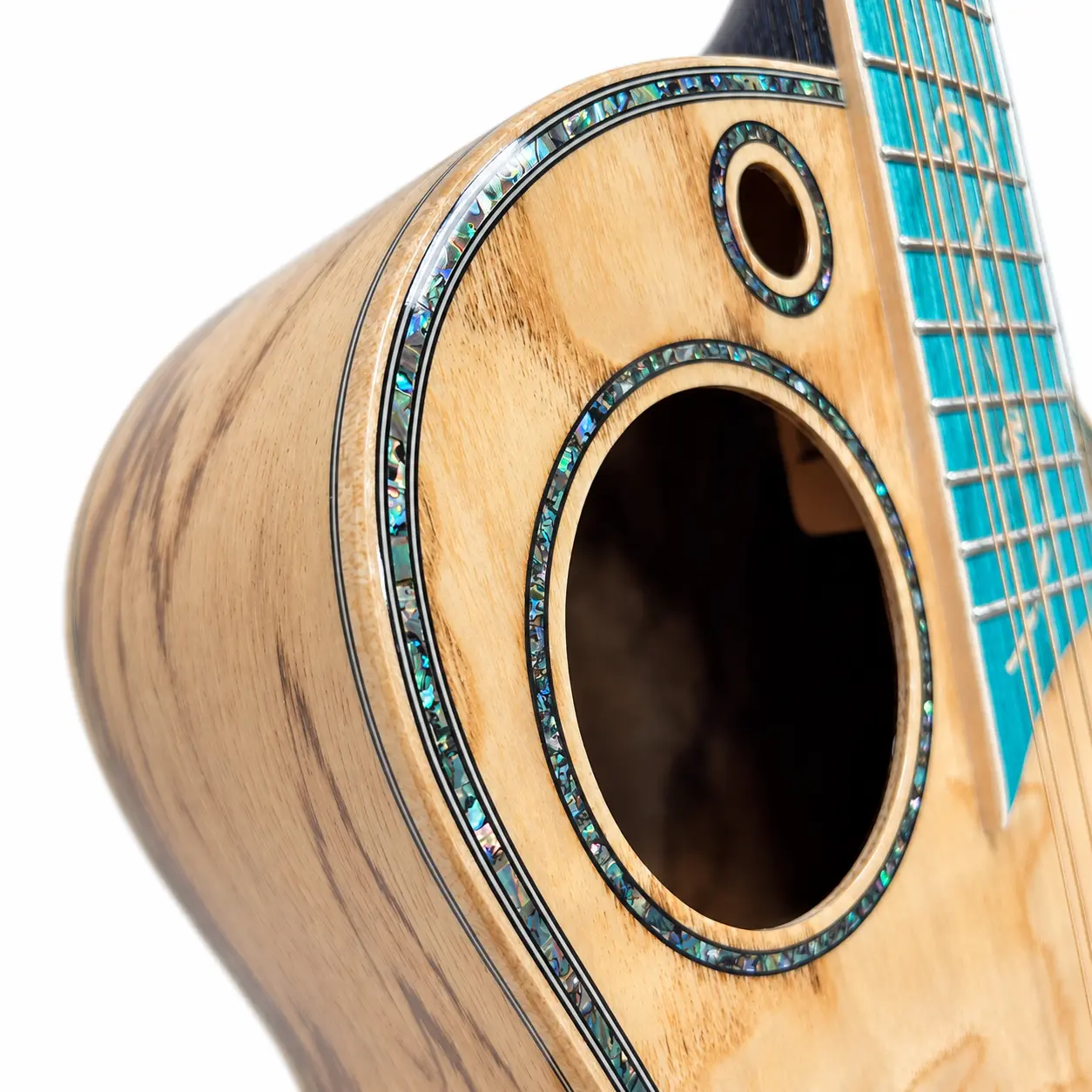

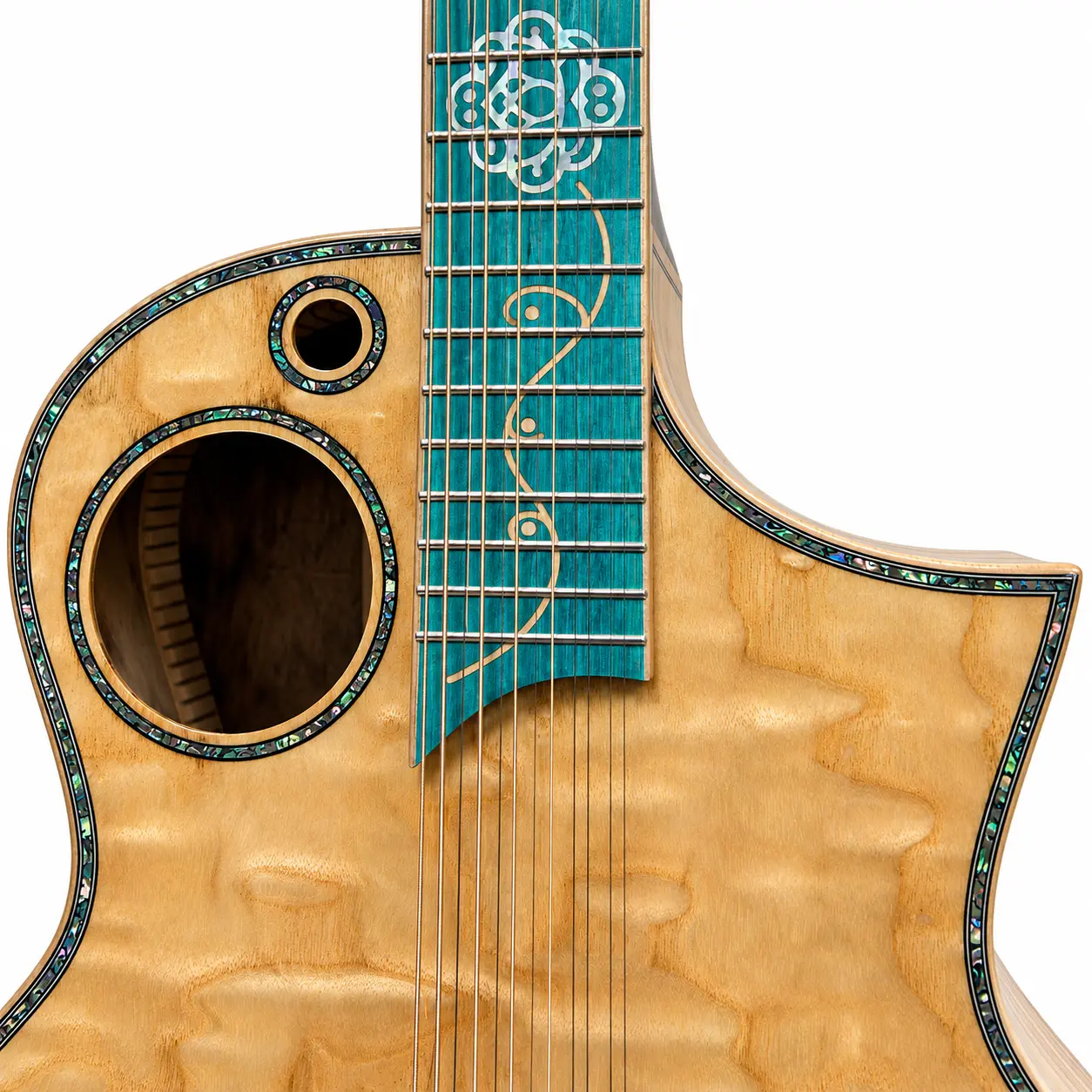

Two off-centre soundholes sit beside the fretboard, leaving a broad area of figured ash beneath the strings. Abalone follows their circular borders and continues around the body, linking the Earth and Moon design with the instrument’s other shell details.
The larger Earth opening is specified at 80 mm across; the smaller Moon opening is 18 mm. Their off-centre layout forms a recognisable part of the Earth design.

04 · The structure inside
Support where it matters. Less unnecessary mass.
Bracing has two jobs to balance: supporting the guitar’s structure and allowing the soundboard to vibrate. Lindo Custom Hollow bracing reduces unnecessary material within the braces while retaining support where it is needed.
The aim is a soundboard that can respond more freely to the strings, helping the body’s natural vibration and resonance. It is a considered way of managing weight and support inside the instrument, where small construction decisions shape its acoustic response.
Explore Lindo hollow bracing


05 · Support for every string
Twelve strings.
Each with a place.

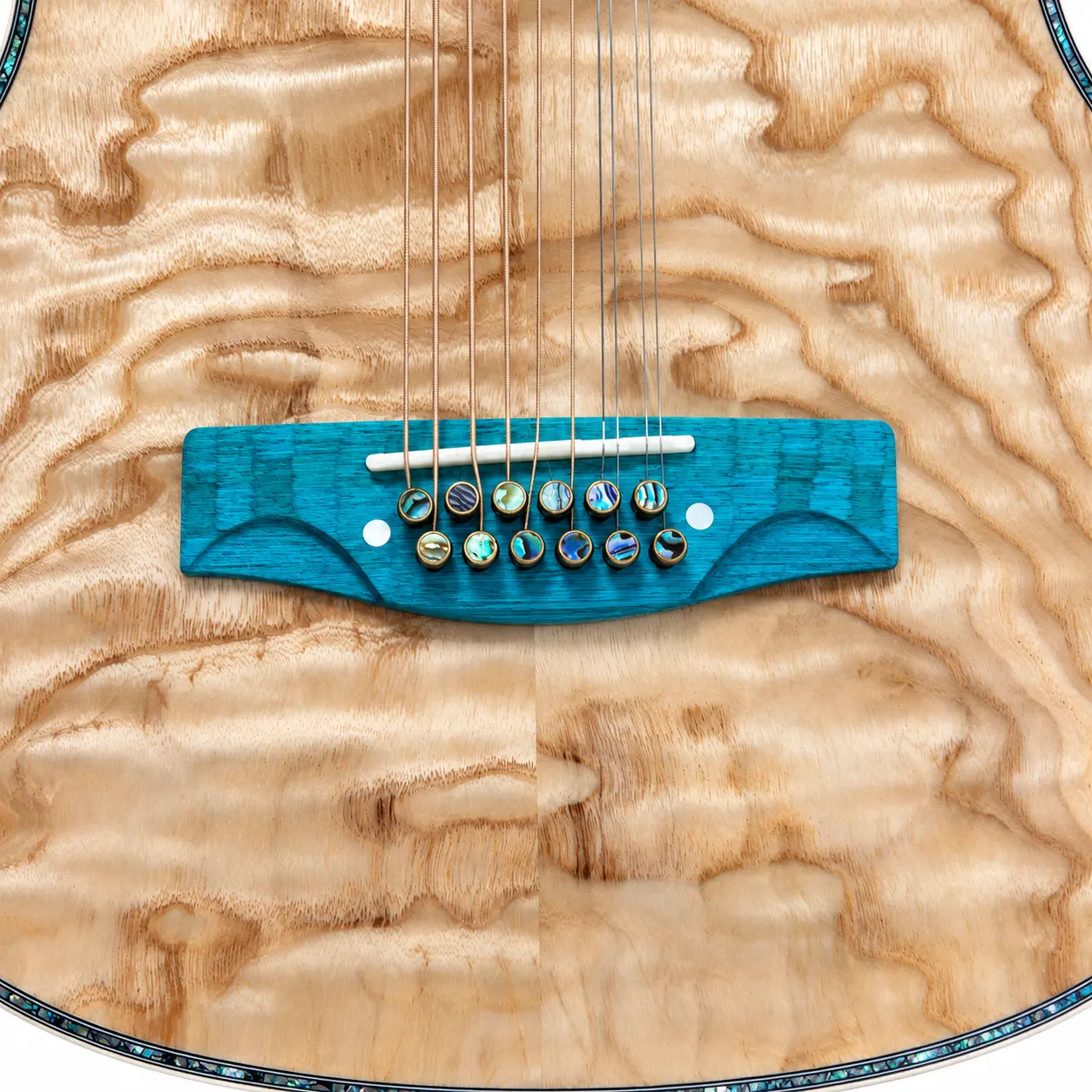

At the other end, twelve brass bridge pins secure the string ends in two rows. A compensated bone saddle helps account for the different speaking lengths the strings need when fretted, while the 48 mm bone nut gives the six pairs room at the start of the fretboard and guides their spacing. The abalone dots in the pins add a small shell detail to hardware with a practical job.
Lindo phosphor-bronze strings complete the paired layout. The bone nut and saddle define the ends of the playing length, with each string supported individually as it travels through the instrument.
06 · Fine tuning
Small adjustments.
One string at a time.

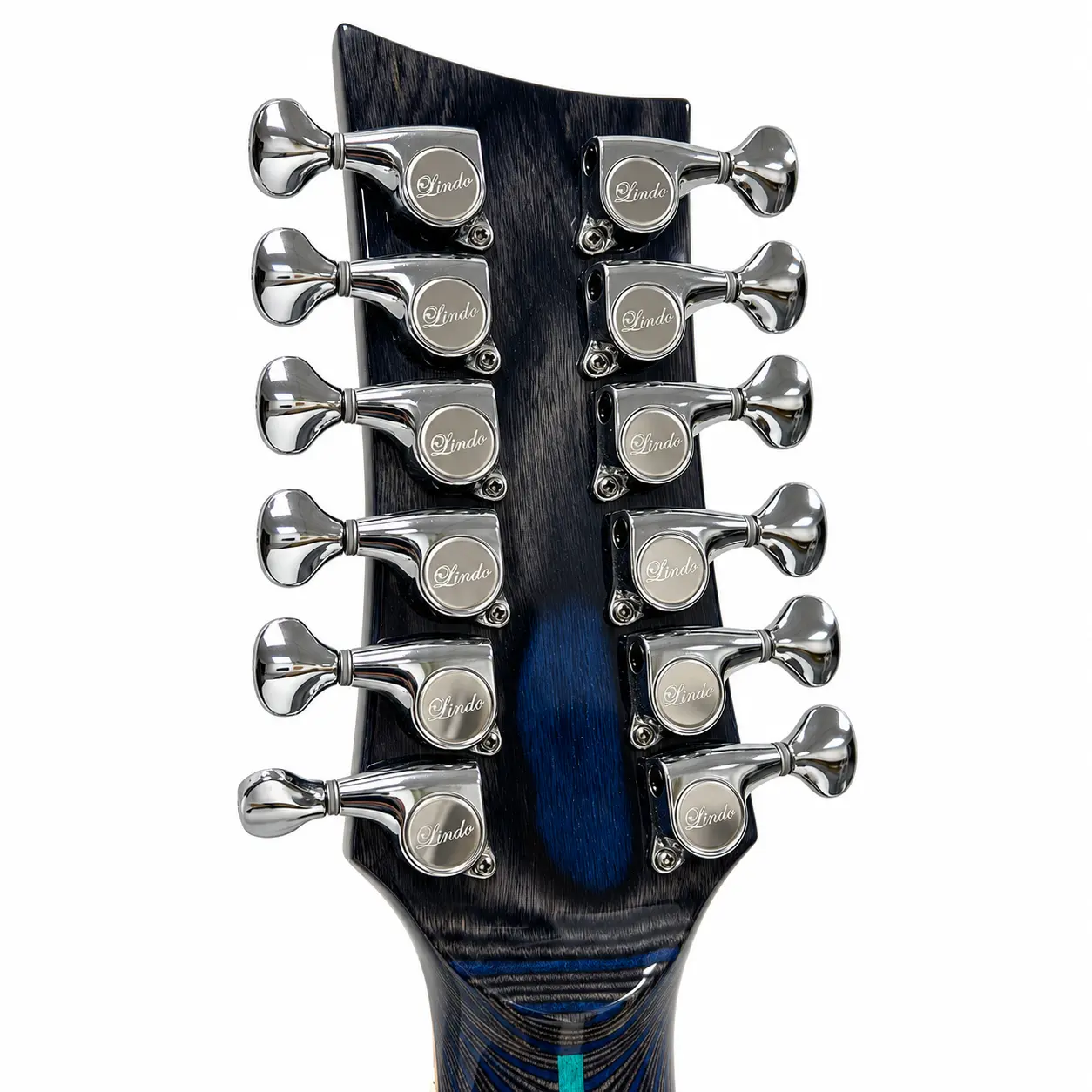

Twelve diecast chrome machine heads give each string its own tuning adjustment. With a 19:1 ratio, a turn of the button produces a smaller movement at the string post, helping you approach the pitch in controlled steps as you work through the pairs.

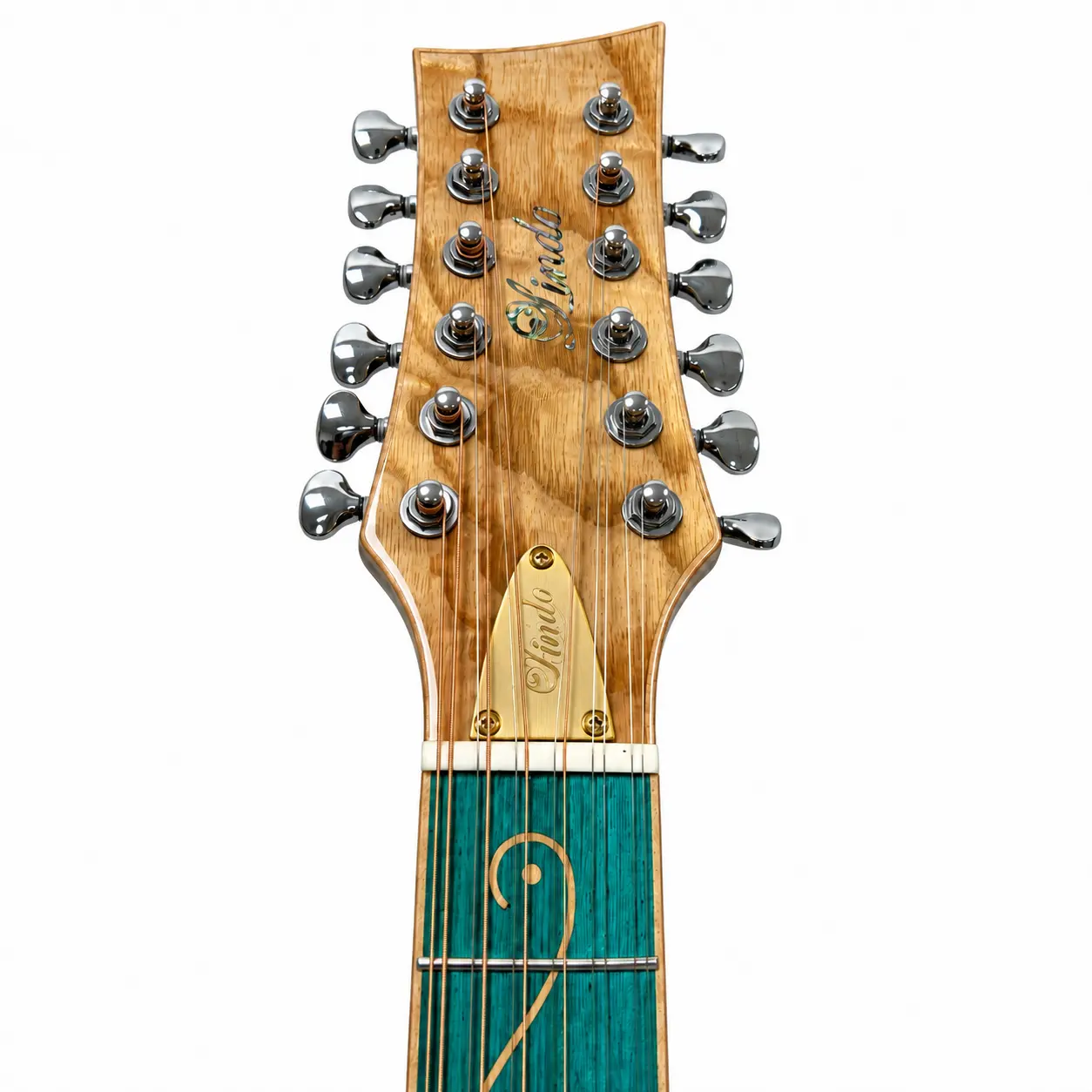

Six machine heads sit along each side of the extended headstock. You can tune one string, check it beside its partner and continue through the six pairs without sharing an adjustment between strings.
07 · Feel and stability
A comfortable shape, with support beneath it.
The C-shaped composite neck has a rounded back for your hand to settle around. A 16-inch fretboard radius gives the playing surface a gentle curve, and the rolled ends of the 21 stainless-steel frets provide smoother contact along the edges as you change position.

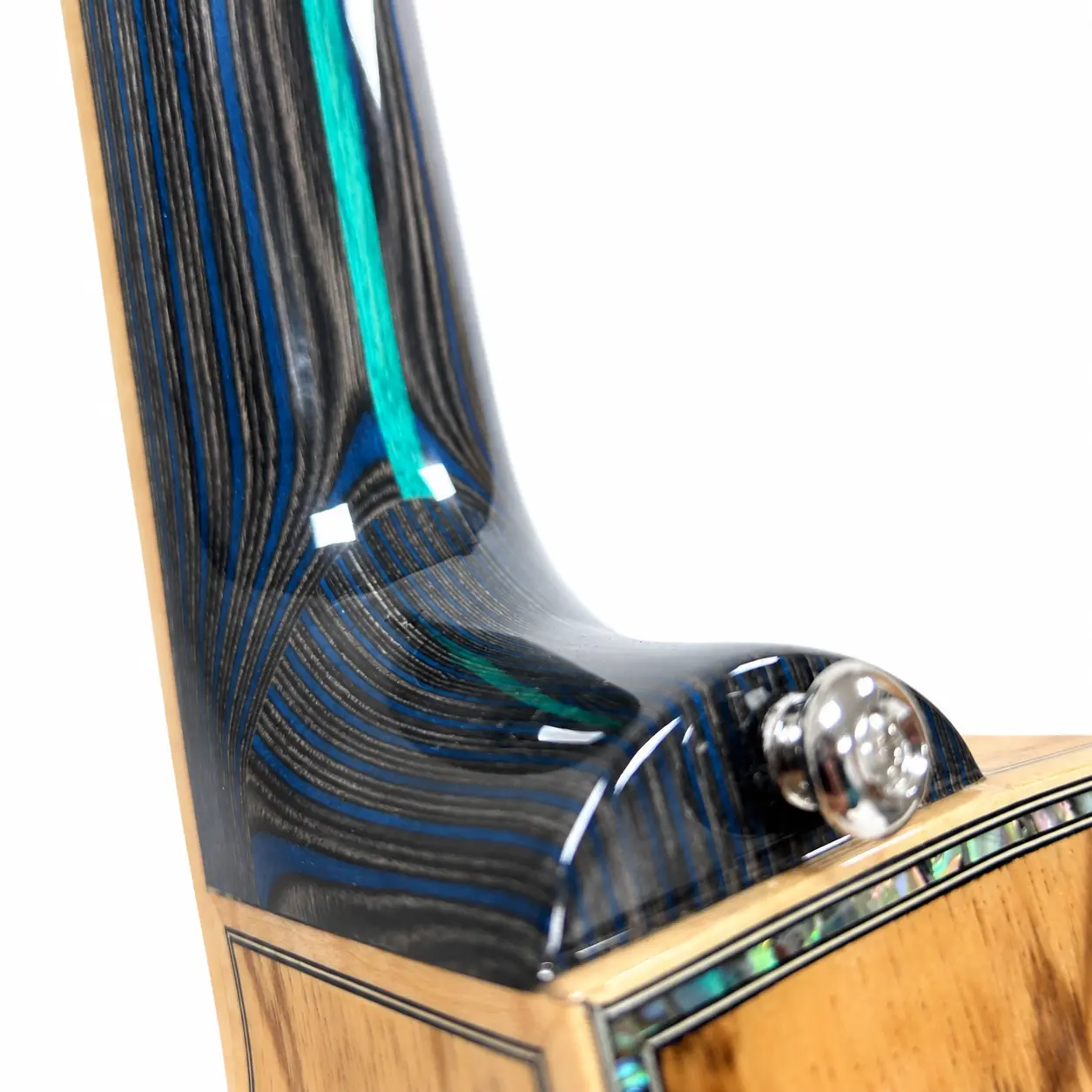

Two carbon-fibre rods reinforce the neck, adding stiffness and helping it resist unwanted movement as temperature and humidity change. The separate two-way truss rod allows neck relief to be adjusted during setup, so structural support and fine adjustment have distinct roles. Normal care and occasional setup remain part of looking after the instrument.


- Support rods
- Two carbon-fibre rods add reinforcement within the composite neck.
- Truss rod
- The separate two-way truss rod adjusts the neck’s lengthwise relief during setup.
08 · A guide in low light
Find your place at a glance.
Luminous side markers put position references along the edge of the neck nearest your playing view. After exposure to light, they glow in dim surroundings, helping you check your position without turning the fretboard towards you.
The markers store light and release it gradually, so they need no battery or wiring. Their glow fades over time and can be refreshed with light before playing. It is a small, useful detail when the room lights are low or stage lighting changes.


09 · For amplified playing
Blend two sources. Shape the result.

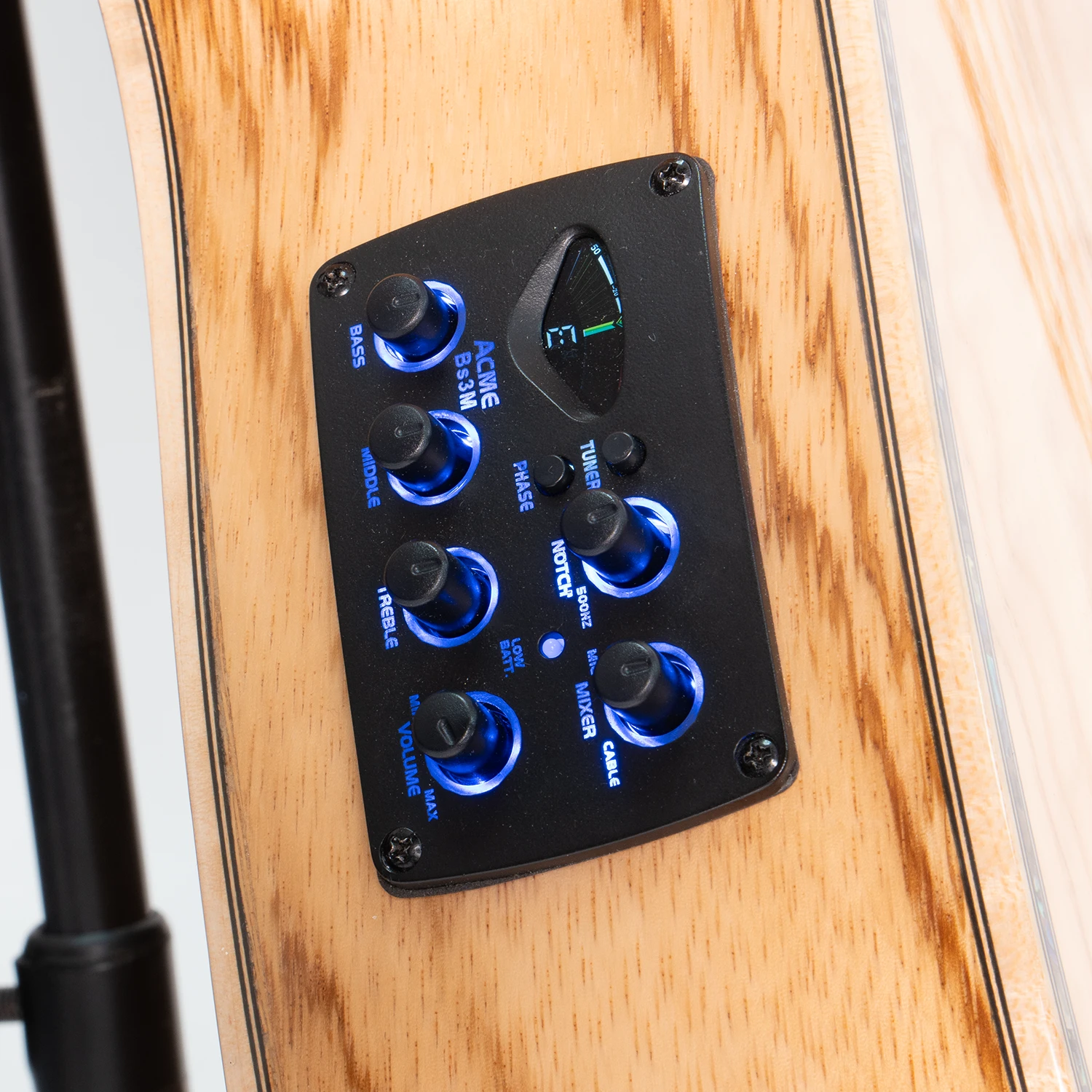

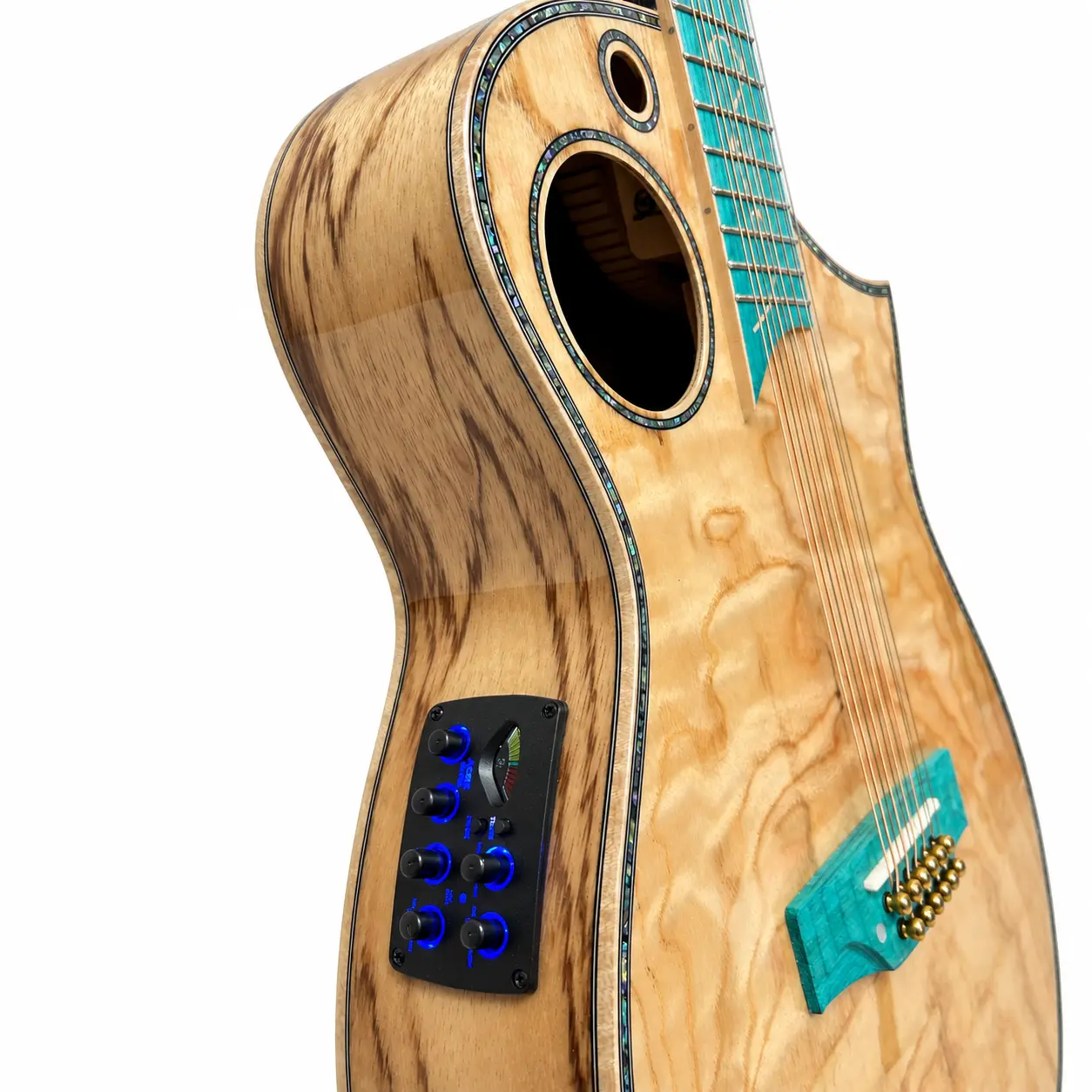

The BS3M system combines an undersaddle piezo pickup with a soundhole microphone. The blend control lets you choose how much of each source reaches your amplifier or PA, giving you a practical way to adapt the amplified sound to the music and the room.
Three-band EQ provides bass, middle and treble adjustment, with a built-in tuner close at hand when you are working through all twelve strings. Phase and notch-filter controls give you further tools for managing feedback when amplified.
- Two sources
- Undersaddle piezo pickup and soundhole microphone.
- Blend and EQ
- Adjust their balance, then shape bass, middle and treble.
- Built-in tuner
- Tune the individual strings from the side-mounted panel.
- Phase and notch
- Additional controls to help manage amplified feedback.

10 · Premium hard case included
Protection between playing sessions.

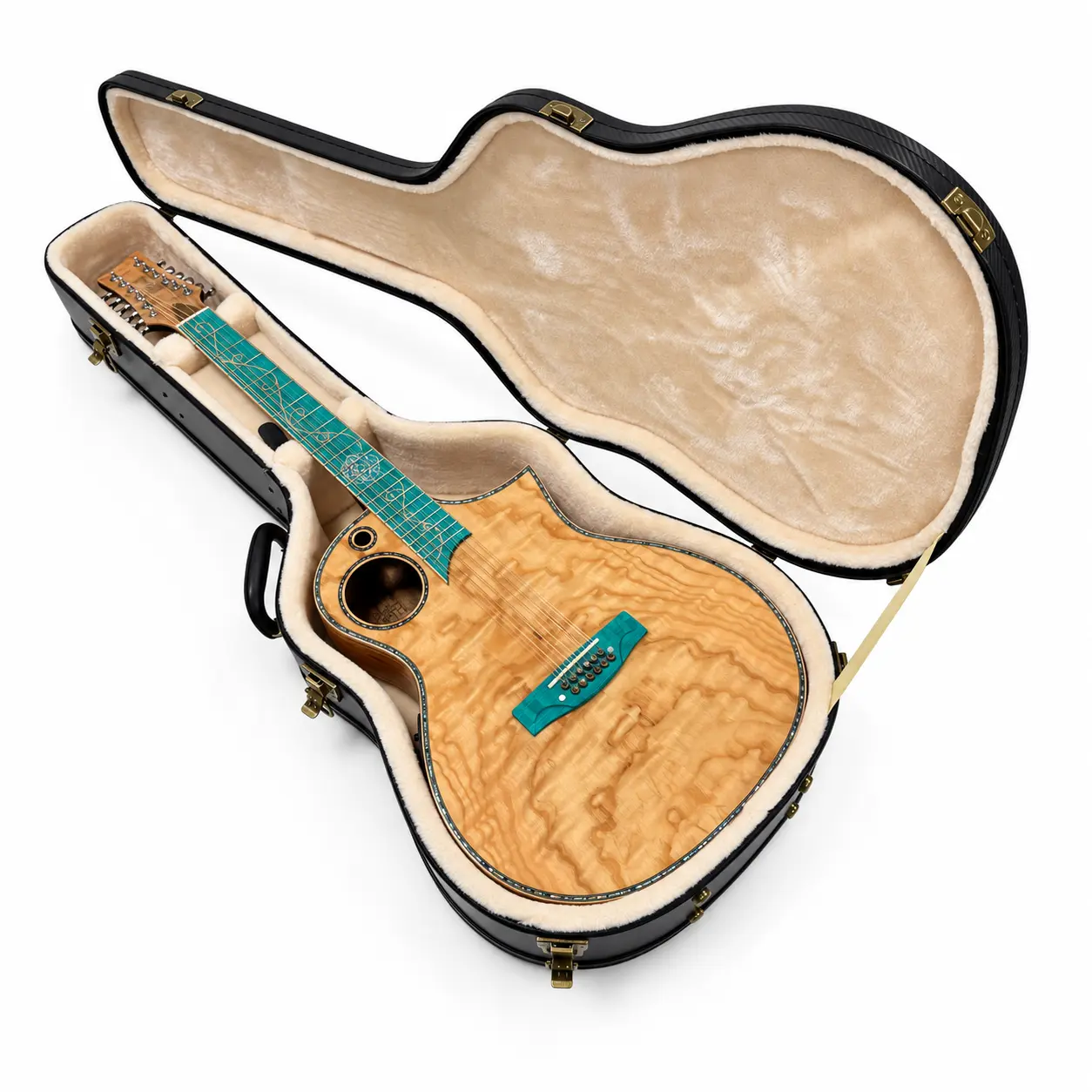

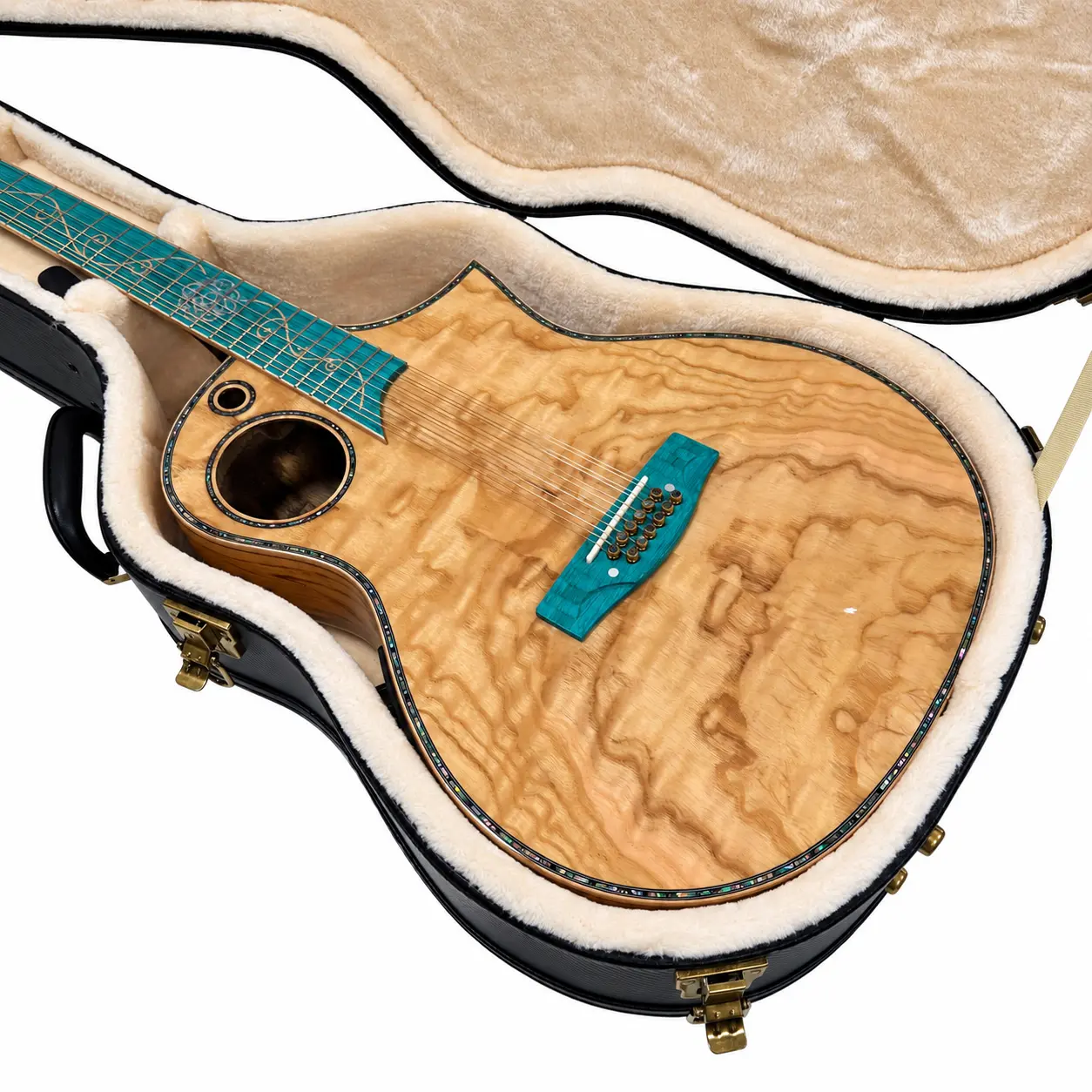

The included premium hard case gives the Earth 12 a dedicated home for storage and carrying. Its sturdy exterior helps shield the instrument from everyday knocks, while the plush lining provides a soft surface around the body and neck.
A supported neck area helps hold the instrument in place, and the internal accessory compartment keeps small essentials together. Metal latches close the case securely, with a carry handle for moving between home, rehearsal and performance.
11 · From drawing to production
An idea, worked through in the workshop.
The Earth 12 began with a twelve-string layout and the practical choices around it: a full-size cutaway outline, a shallow body, a reinforced neck and accessible amplified controls. Workshop stages brought those decisions together before the final hardware and finish were fitted.
Production is now complete. The Earth 12 is available to pre-order, with availability from 15 January 2027. Explore the original build stories for a closer look at the design’s development.

Every string has its place
Individual tuning, paired strings and the path from headstock to bridge.
Read the build story
Where the hand finds its place
The neck shape, fret finishing and reinforcement behind the playing feel.
Read the build story
From drawing to workshop
The Earth 12 design taking shape through its workshop stages.
Read the build story12 · The practical details
Specifications.
The Earth 12 specification, item by item.
| Item | Detail |
|---|---|
| Model | Lindo Earth 12 String Electro Acoustic Guitar |
| Instrument status | Production model |
| Availability | Pre-order · available from 15 January 2027 |
| Number of strings | 12 |
| Strings | Lindo Phosphor Bronze |
| Colour | Natural |
| Finish | Gloss |
| Size | 41-inch / full-size |
| Scale length | 25.5 inches |
| Body depth | 80 mm |
| Listed weight | 2.7 kg |
| Top | Highly figured Tamo ash |
| Back | Flatsawn zebrano |
| Sides | Flatsawn zebrano |
| Binding | Maple |
| Purfling | Front and back abalone seashell |
| Earth soundhole | 80 mm diameter |
| Moon soundhole | 18 mm diameter |
| Bracing | Lindo Custom Hollow |
| Neck material | Composite |
| Neck profile | C-shaped |
| Neck stripe | River skunk stripe |
| Neck reinforcement | Dual carbon-fibre support rods |
| Truss rod | Two-way |
| Fretboard | Teal composite |
| Fretboard radius | 16 inches |
| Bridge | Composite |
| Number of frets | 21 |
| Frets | Rolled-edge stainless steel |
| Fret specification | 2.4 mm |
| Nut material | Bone |
| Nut width | 48 mm |
| Saddle | Compensated bone |
| Bridge pins | Brass with abalone seashell dots |
| Machine heads | Diecast chrome |
| Machine-head ratio | 19:1 |
| Inlay design | Custom Flora design |
| Inlay materials | Mother-of-pearl and maple wood |
| Preamp | BS3M blend preamp |
| Equaliser | Three-band EQ |
| Tuner | Built-in |
| Phase | Phase control |
| Notch filter | Notch filter control |
| Pickup | Undersaddle piezoelectric |
| Microphone | Soundhole microphone |
| Blend | Microphone / piezo blend |
| Side position markers | Light-charged luminous markers |
| Included case | Premium hard case |
