The Koya acoustic
Koya Electro Acoustic

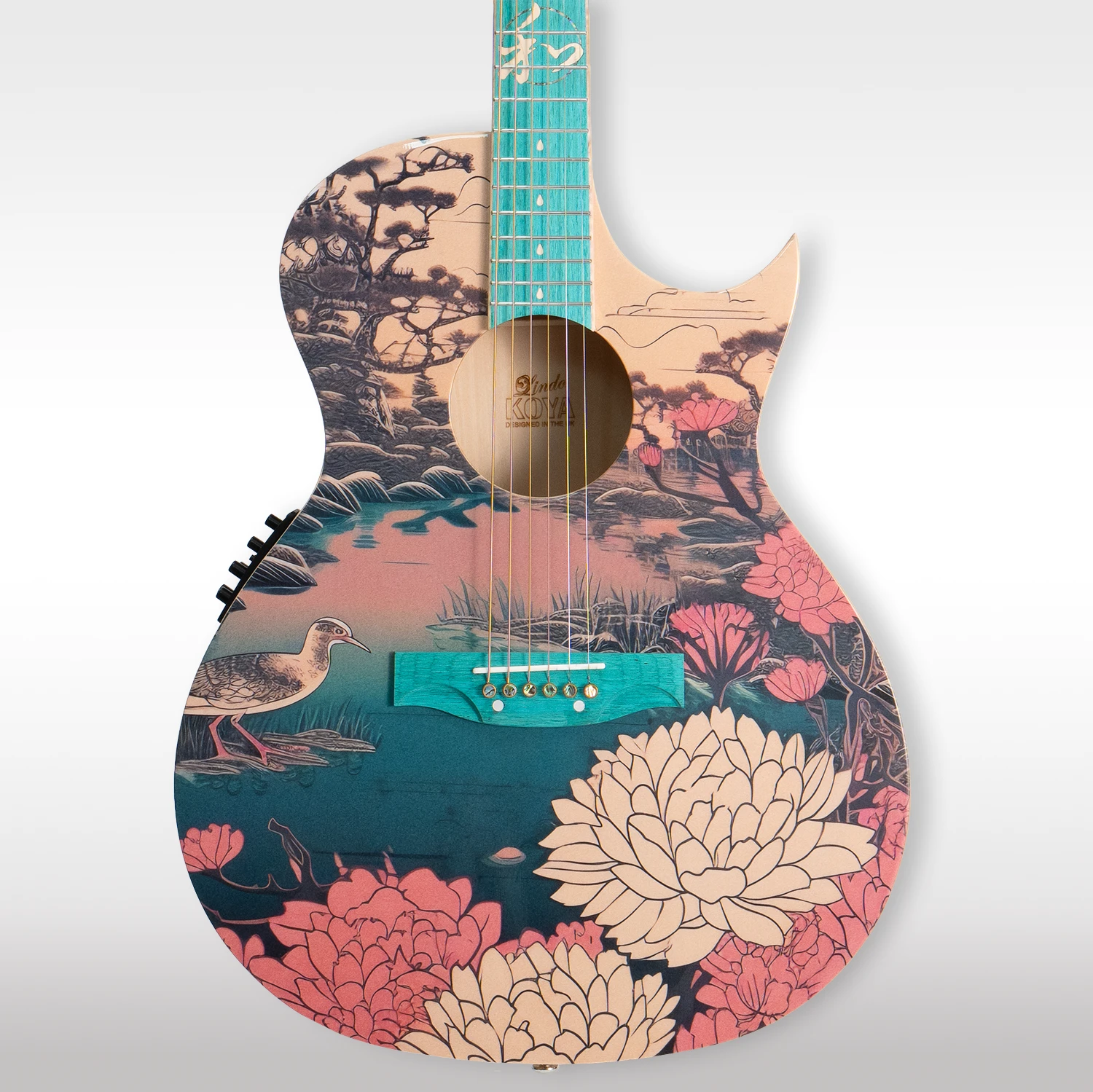

Look closely at the Koya and the woodland scene comes into focus. Peach and rose petals overlap at the water’s edge, fine branches reach across the sky, and ripples carry the colours of the bank into the water.
The new artwork brings more depth to the same landscape. Its warm colours sit against the teal fretboard and bridge, with a matching woodland print on the headstock.

The soundboard
Before the first note
The spruce soundboard is where the strings’ movement becomes sound. The bridge transfers that movement to the top, so the choice of wood and the way it is braced matter to how the guitar responds under your hand.
At 80 mm deep, the body sits close when you play seated or standing. The 25.5-inch scale keeps the familiar feel of a full-size guitar, and the cutaway makes higher frets easier to reach.
See the spruce soundboards in the workshop
Inside the body
Hollow bracing for a responsive soundboard
The braces support the soundboard under string tension. Openings in selected sections reduce the weight of the bracing while leaving support where the top needs it.
The aim is to let the soundboard move more freely, so a light touch can set it in motion and the notes in a strummed chord have room to ring.
Read about Lindo hollow bracing
Back and sides
When the light finds the maple
Turn the guitar and the flame maple figure shifts with the light. The back and sides use figured flame maple veneer, while maple binding traces the body and a line of abalone shell runs around the back.
The finish brings out the figure in the wood, so the back has its own character beside the printed landscape on the front.
Explore the figured maple and shell detail


Neck construction
The River stripe and the structure beneath it
A strip of figured flame maple follows the back of the slim C neck. Under the fretboard, twin carbon fibre rods reinforce the composite neck and help it resist movement as conditions change. A dual-action truss rod lets relief be adjusted during setup.
The 16-inch fretboard radius gives a relatively flat playing surface. Rounded edges on the 21 stainless steel frets help the fretting hand move comfortably along the bound neck.
Follow the River stripe through the build


Fretboard and side markers
Landmarks under your hand
Maple and abalone shell inlays inspired by the Five Elements run along the teal fretboard. The inlays give you a visual reference as you move between positions.
The Luminlay side dots help you find those positions in lower light. Expose them to a bright light before playing. They store some of that energy and release it as a glow that gradually fades. A torch can top them up between songs.
Read the story behind the inlay design
A detail inside
A second look through the soundhole
Look through the central soundhole and you’ll find the Lindo Koya mark engraved on the inner face of the back. The idea started as a small drawing and was carried through to the finished guitar, where it becomes part of the inside of the instrument.
See how the interior mark was developed

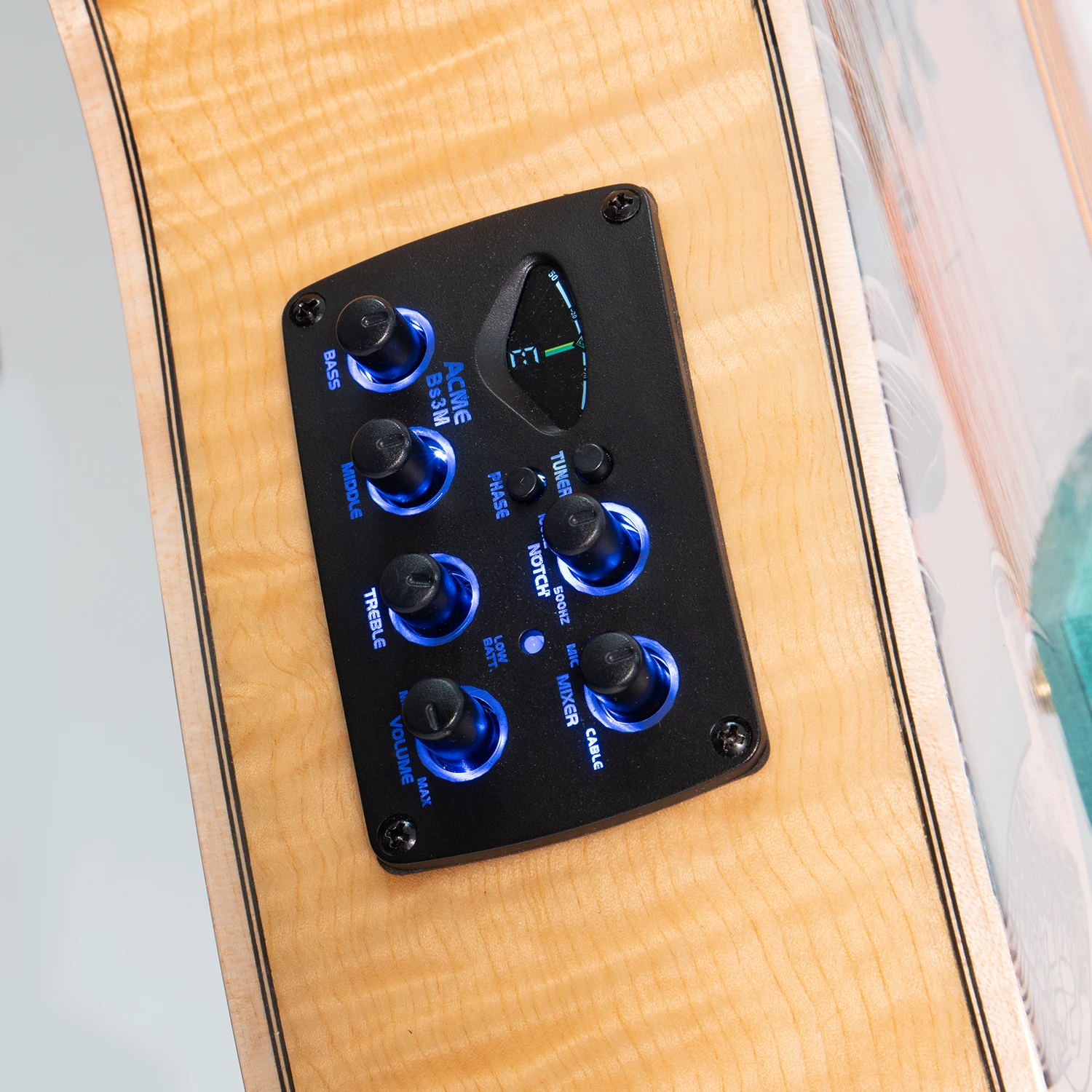

ACME BS3M electronics
Two ways to hear the same note
The undersaddle piezo gives a clear starting point for amplified playing. Blend in the soundhole microphone to bring in more of the body’s acoustic sound, then use volume and the three-band EQ to suit the room.
The onboard tuner is handy between songs. Phase and notch controls give you ways to manage feedback, while the quarter-inch jack and XLR provide connection options for an acoustic amp, mixer or other compatible equipment.
Read how the two pickup sources work together


Included with your guitar
Premium hard case
The Koya comes with a hard case for carrying and storing the guitar. The plush lining cushions the finish, and the neck support helps keep the instrument in position when the case is closed.
The accessory compartment keeps small items together, while the carrying handle and metal latches make it straightforward to pack up after playing.





Specifications
| Item | Detail |
|---|---|
| Model | Lindo Koya Electro Acoustic Guitar |
| Configuration | Right-handed, six-string electro acoustic |
| Body shape | Single cutaway |
| Scale length | 25.5″ / 647.7 mm |
| Overall length | 1,025 mm |
| Body length | 490 mm |
| Lower bout width | 390 mm |
| Upper bout width | 286 mm |
| Body depth | 80 mm |
| Soundhole diameter | 100 mm, central |
| Soundboard | Spruce with revised printed artwork |
| Back and sides | Figured flame maple veneer |
| Body binding | Figured flame maple |
| Back purfling | Abalone shell |
| Body finish | High gloss |
| Bracing | Lindo hollow bracing |
| Interior mark | Lindo Koya mark laser-engraved on the inner face of the back |
| Neck | Composite, slim C profile |
| Neck joint | Set dovetail |
| Reinforcement | Twin carbon fibre support rods |
| Truss rod | Dual action |
| Neck finish | Gloss |
| Neck stripe | Figured flame maple River stripe |
| Fretboard | Teal composite |
| Fretboard radius | 16″ |
| Fretboard binding | Figured flame maple |
| Inlays | Maple and abalone shell, inspired by the Five Elements |
| Luminous side markers | Luminlay |
| Frets | 21 rounded-edge stainless steel frets, 2.5 mm |
| Nut | 43 mm bone |
| Headstock | Printed artwork, gloss finish and figured flame maple binding |
| Machine heads | Chrome Boyun GQ033CR-KB-63, three per side |
| Strings | Phosphor bronze, .011–.052 |
| Bridge | Teal composite |
| Saddle | Bone |
| Bridge pins | Brass with abalone shell dots |
| Strap buttons | Chrome |
| Preamp | ACME BS3M blend preamp |
| Pickup sources | Undersaddle piezo and soundhole microphone |
| Preamp controls | Pickup blend, volume and bass, middle and treble EQ |
| Tuner and feedback controls | Onboard tuner, phase switch and notch filter |
| Output sockets | ¼″ jack and three-pin XLR |
| Included case | Hard case included |
| SKU | LINDO_KOYA_ACOUSTIC |
| EAN | 5060244178861 |
